Our products
Get an overview of our main products on this page. You can also find more detailed information on product properties, tolerances and dimensions in our catalog.
Series S
![Baureihe S Baureihe S](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/0010a.png)
ROW / S
Rollers: self-hardened rollers supported at both ends by a journal guide in fl at steel rings with enough tolerance
Cage: Flat steel rings fastened together permanently by rivetted pins
Application areas: For light or medium loading applications
max. rotation speed: ca. 800 r.p.m
![Baureihe S Baureihe S](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/0010a.png)
ROH / S
Rollers: hardened and by request ground rollers.
Cage: Flat steel rings fastened together permanently by rivetted pins
Application areas: For heavy loading applications and a rotation speed > 800 r.p.m.
max. rotation speed: ca. 2000 r.p.m
![Baureihe S Baureihe S](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/0010a.png)
RON / S
Rollers: t.b.d.
Cage: t.b.d.
Application areas: t.b.d.
max. rotation speed: XXX r.p.m
Series Wa
![Baureihe Wa](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/Baureihe-Wa.png)
ROW / Wa
Rollers: self-hardened, ground or polished steel rollers held at both ends in milled roller pockets
Cage: Milled brass rings firmly fastened to one another by rivet pins serve as side holders for the rollers
Application areas: For heavy and intermittent loading applications (mostly for engine and apparatus construction)
max. rotation speed: ca. 800 r.p.m
![RoH Wa liegend](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2024/01/RoH-Wa-liegend-e1705059957306-300x276-1.jpg)

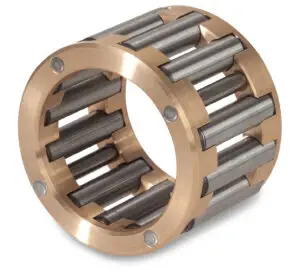

ROH / Wa
Rollers: hardened and ground precision rollers held at both ends in milled roller pockets
Cage: Milled brass rings firmly fastened to one another by rivet pins serve as side holders for the rollers
Application areas: For heavy and intermittent loading applications (mostly for engine and apparatus construction)
max. rotation speed: ca. 2000 r.p.m
![RoH W9 RoH W9](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/RoH-W9.png)

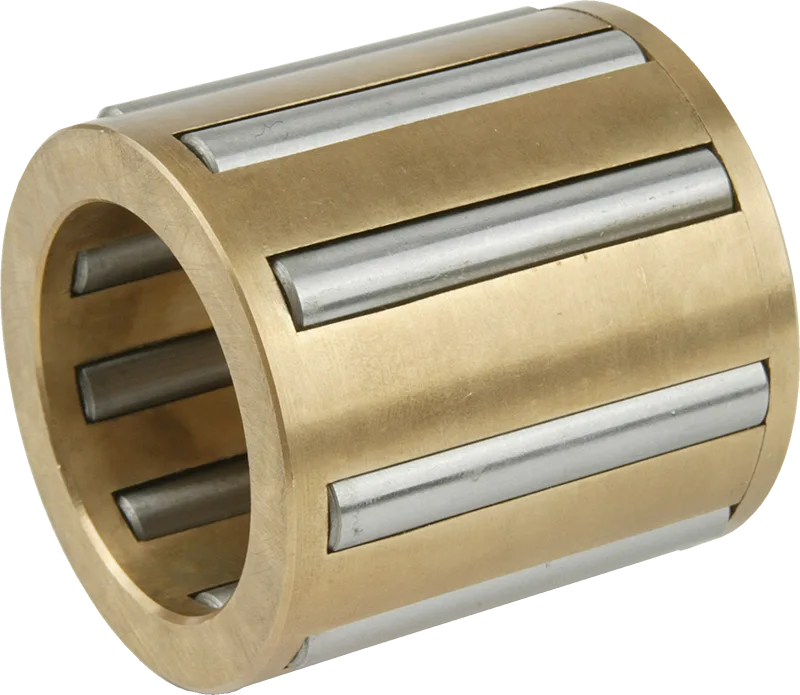

ROH / W9
Rollers: hardened and ground precision rollers held in completely milled, cylindrical roller pockets
Cage: Completely closed brass cage with a riveted ring at one end
Application areas: For extreme heavy loading
application – It can also take up axial load to a slight extent
max. rotation speed: ca. 2500 r.p.m
Series K
![RoW K_](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2024/01/RoW-K_-e1705060033448-606x1024-1.jpg)

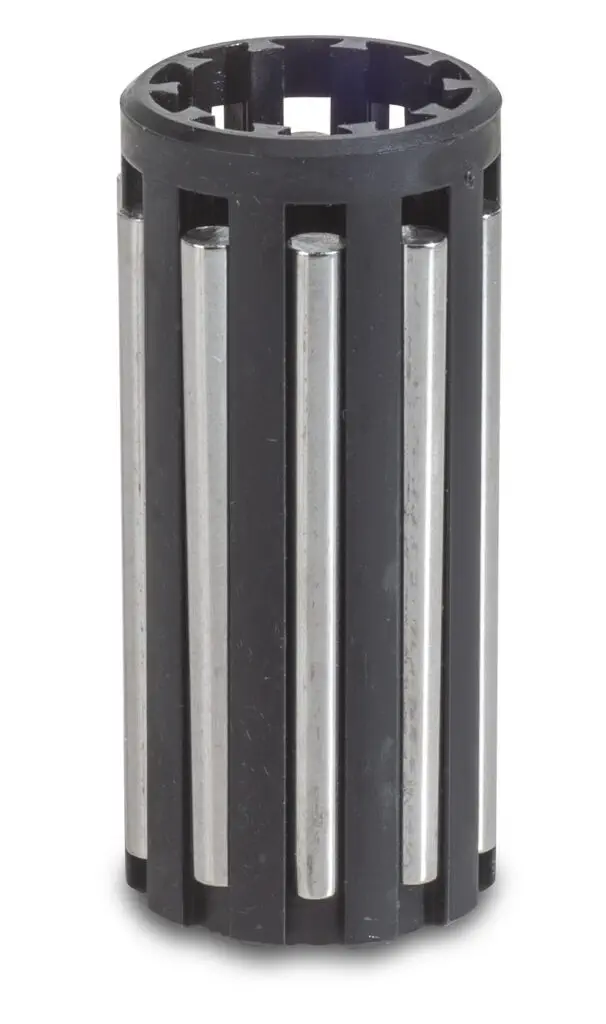

ROW / K
Rollers: Self-hardened rollers supported over the entire length by the pockets and surrounded by the polyamide cage
Cage: Polyamide cage with a precision axial roller guidance, extremely quite, extremely high resistance to distortion, high cage abrasion resistance and resistance to chemicals
Application areas: For light or medium loading applications
max. rotation speed: ca. 800 r.p.m
![0010b](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/0010b.png)
ROH / K
Rollers: Hardened and by request ground rollers
Cage: Polyamide cage with a precision axial roller guidance, extremely quite, extremely high resistance to distortion, high cage abrasion resistance and resistance to chemicals
Application areas: For upper loading applications and a rotation speed > 800 r.p.m
max. rotation speed: ca. 2000 r.p.m
![RoN K blau](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2024/01/RoN-K-blau-596x1024-1.jpg)

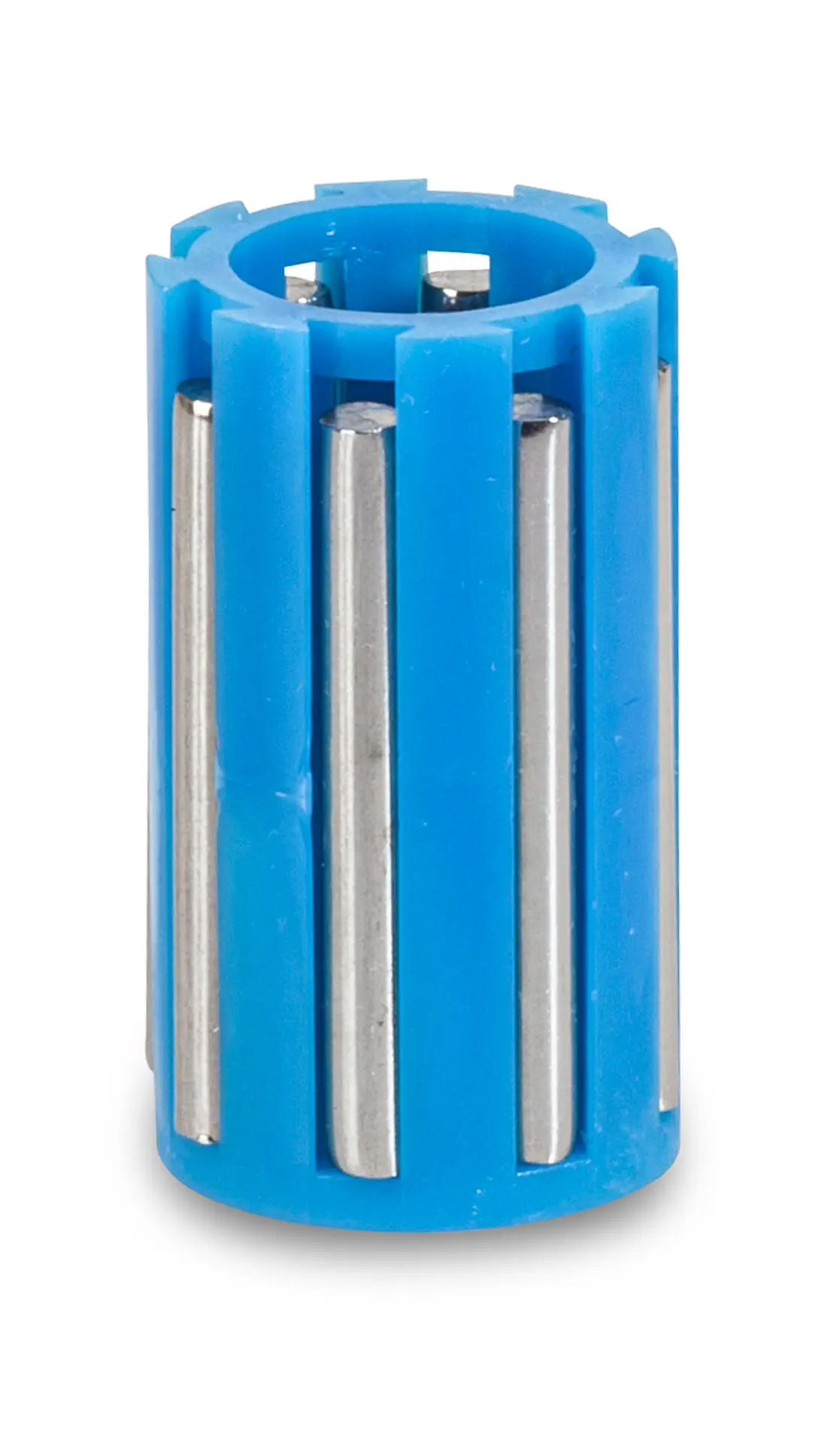

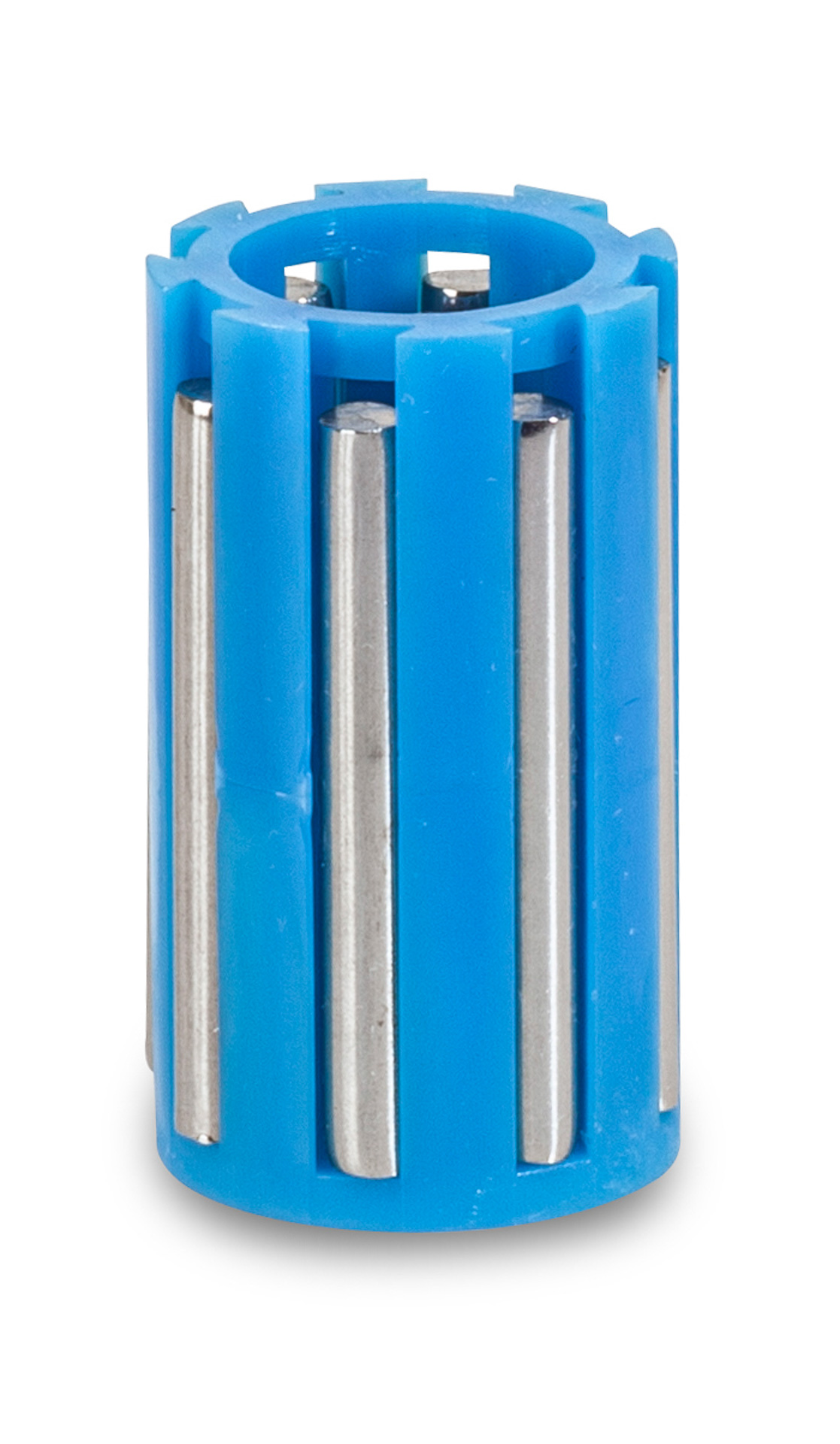

RON / K
Rollers: Rollers from rust and acid resistant steel
Cage: Polyamide cage with a precision axial roller guidance, extremely quite, extremely high resistance to distortion, high cage abrasion resistance and resistance to chemicals
Application areas: For light or medium loading applications, where steel is not applicable.
max. rotation speed: ca. 800 r.p.m
![RoK K](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2024/01/RoK-K-213x300-1.png)

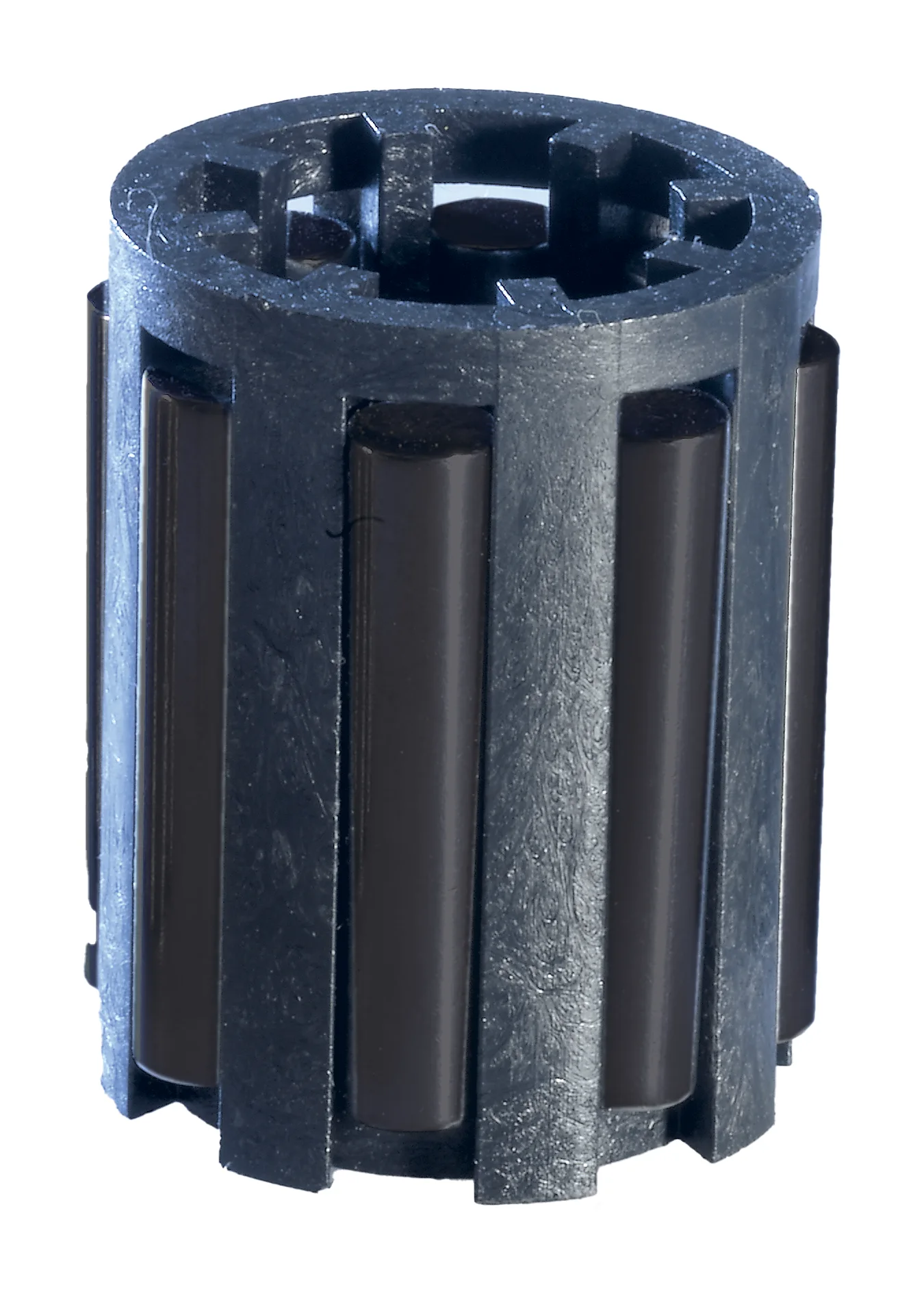

ROK / K
Rollers: Rollers from polyamide
Cage: Polyamide cage with a precision axial roller guidance, extremely quite, extremely high resistance to distortion, high cage abrasion resistance and resistance to chemicals
Application areas: For light or medium loading applications, where steel is not applicable.
max. rotation speed: ca. 800 r.p.m
Series P
![0010c](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/0010c.png)

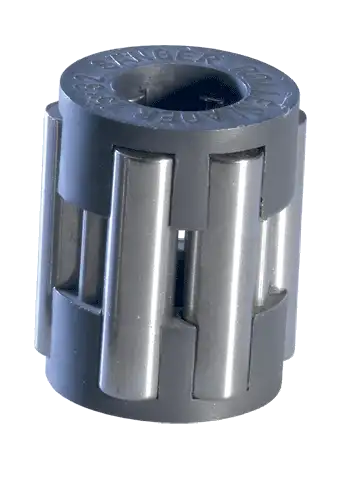

ROW / P
Rollers: Self- hardened rollers held at both ends in cylindrical roller pockets
Cage: Side rings from polyamide permanently connceted with one another by steel pins of the required length
Application areas: like ROW / K
max. rotation speed: ca. 800 r.p.m
![0010c](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/0010c.png)
ROH / P
Rollers: Hardened and by request ground rollers
Cage: Side rings from polyamide permanently connceted with one another by steel pins of the required length
Application areas: like ROH / K
max. rotation speed: ca. 2000 r.p.m
![0010c](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/0010c.png)
RON / P
Rollers: Rollers from rust and acid resistant steel
Cage: Side rings from polyamide permanently connceted with one another by steel pins of the required length
Application areas: like RON / K
max. rotation speed: ca. 800 r.p.m
Further information on our series
![zeichnung](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2024/01/zeichnung-300x182-1.png)

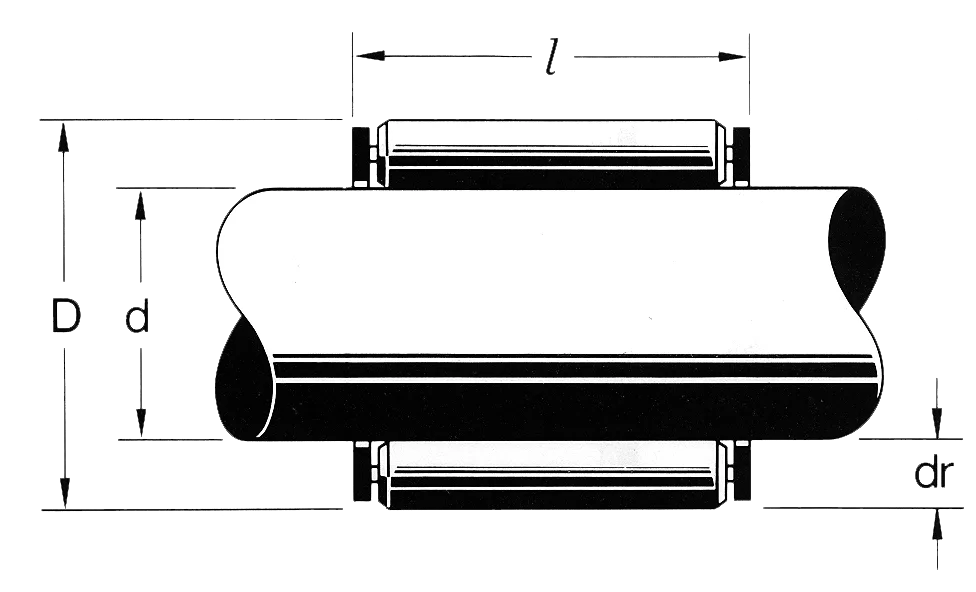

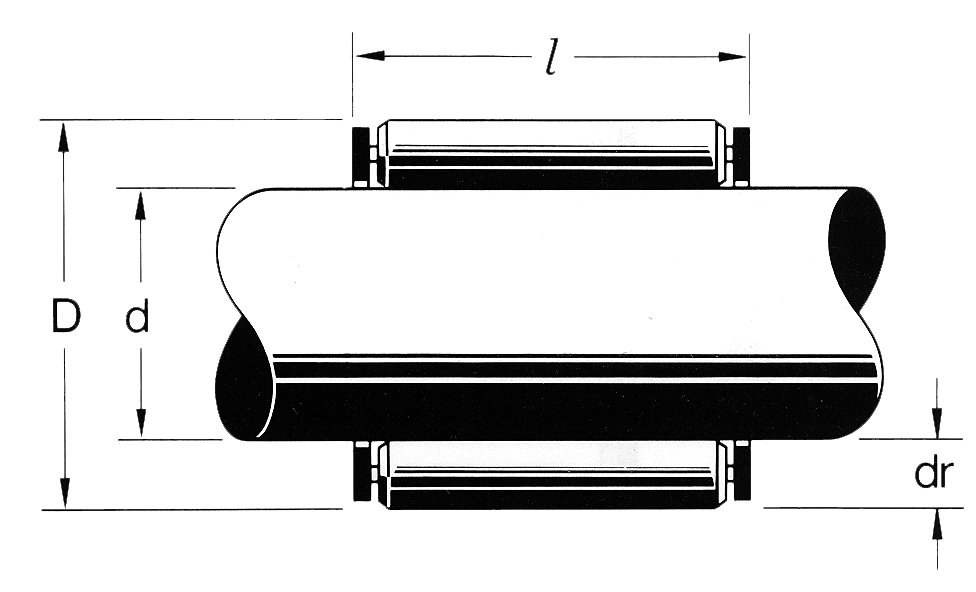

Installation tolerances
d = ISA f7
D = ISA F7
Scope of supply
- The type series listed can be supplied in almost any required metric and inch dimension.
required. (see main catalog ) - Special tolerances on request
- Special materials ( e.g. extremely heat-resistant steel or rust-resistant materials ) on request
- roller and cage assemblies to DIN 5402 / IWA bearings / Baltzer Rollerbearings on request
- Split bearings on request
- Available in almost all common dimensions
- Special dimensions possible, depending on the quantity required
- Special cage designs available for extreme stability
Ordering details
- Type designation – Outside diameter ( D ) – Inside diameter ( d ) – Bearing length ( l ) – Roller diameter ( dr )
Other products

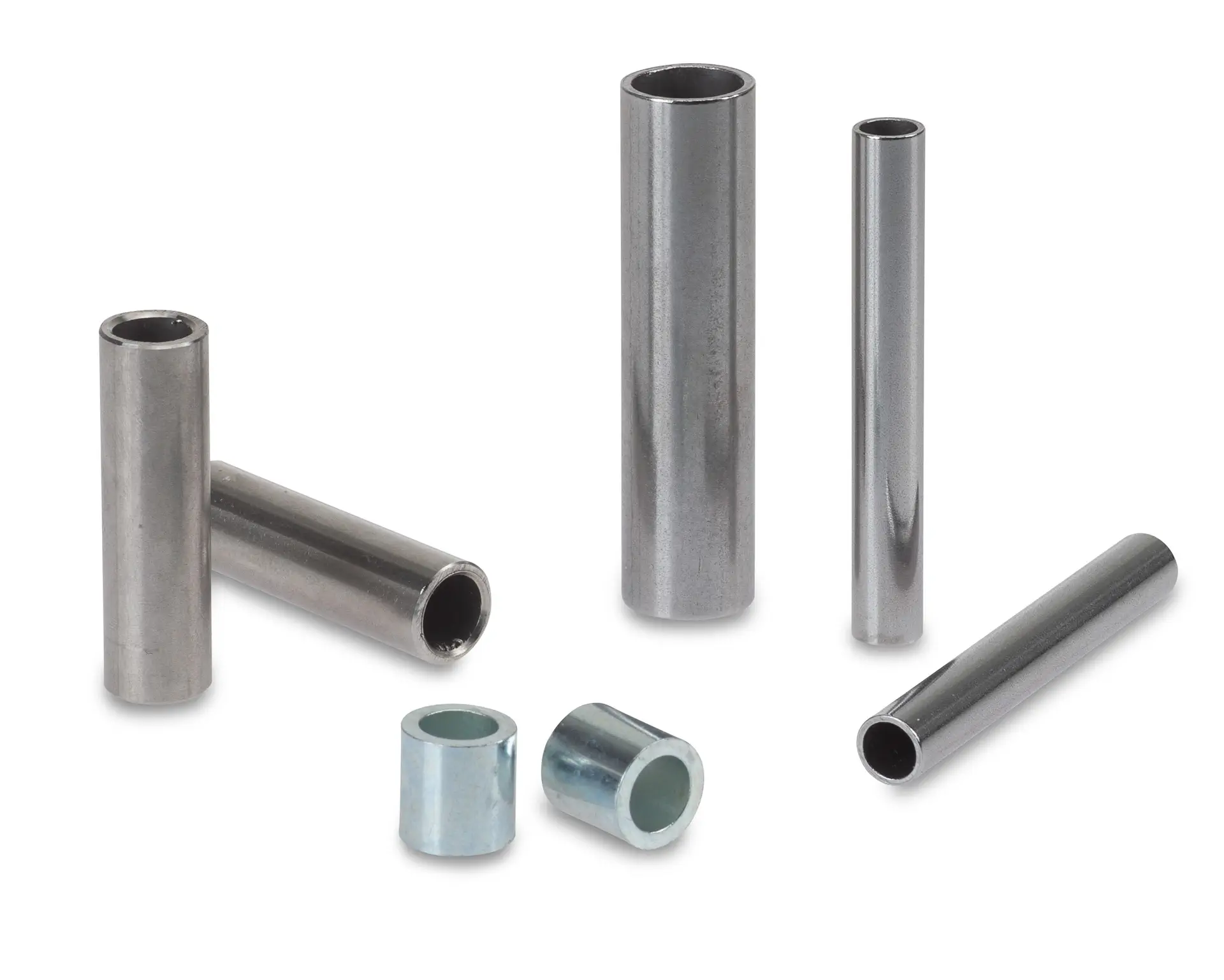

Spacer sleeve
![Distanzrohre Rohrabschnitte](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2024/01/Distanzrohre.jpg)

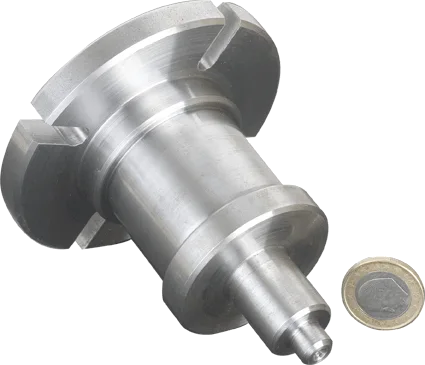

Rotary parts
![Drehmuster Drehmuster](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/drehmuster.png)

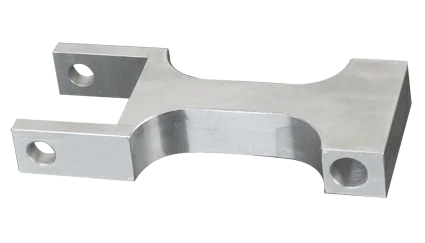

Milled parts
![Frästeil](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2023/12/fraesteil.png)

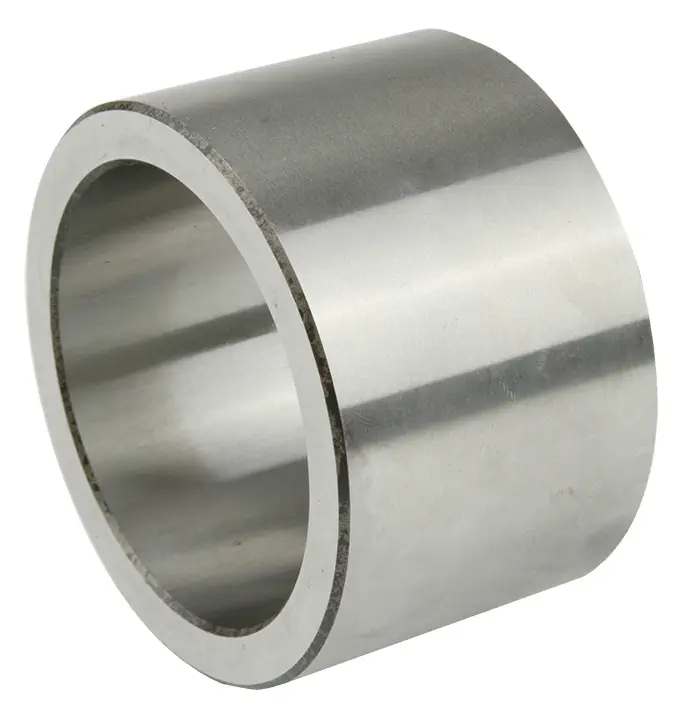

Solid Precision Sleeves
![Massivbuchse Massivbuchse](https://saengerrollenlager6e053.zapwp.com/q:i/r:0/wp:1/w:1/u:https://test.saenger-rollenlager.de/wp-content/uploads/2024/01/Massivbuchse-289x300-1.jpg)
